Aircraft Buying Guides
Citation XLS
Maximum Range
3,500 nm
Maximum Cruise Speed
475 ktas
Maximum Passengers
12
Useful Load
14511 lbs
Minimum Runway Length
5,200 ft
About
Citation XLS
Key Specs at a Glance
Model Class:
Midsize Jet
Powerplant:
Pratt & Whitney
Model:
PW545B
Engine Programs:
PA, PA+, ESP Silver, ESP Silver Lite, ESP Gold, ESP Gold Lite, ESP Platinum, JSSI
Thrust Per Engine (lbs)
3991
Avionics System:
Honeywell Primus 1000, Garmin G5000
Baggage Capacity Ext ft³:
80
Minimum Crew:
2
Photo Gallery & Video Review
Inside and Out: Space, Comfort, and Design
Market Data
Current Market
Fleet Size:
310
Number of Aircraft For Sale:
8
Asking Price Range:
$3,995,000 - $7,495,000
Percentage of Fleet For Sale:
2.6%
Average Days on Market:
140
Six Month Retail Sales
Number of Aircraft Sold:
8
Sold Price Range:
$3,300,000 - ~$8,300,000
Percentage of Fleet Sold:
3.8%
Average Days on Market:
171

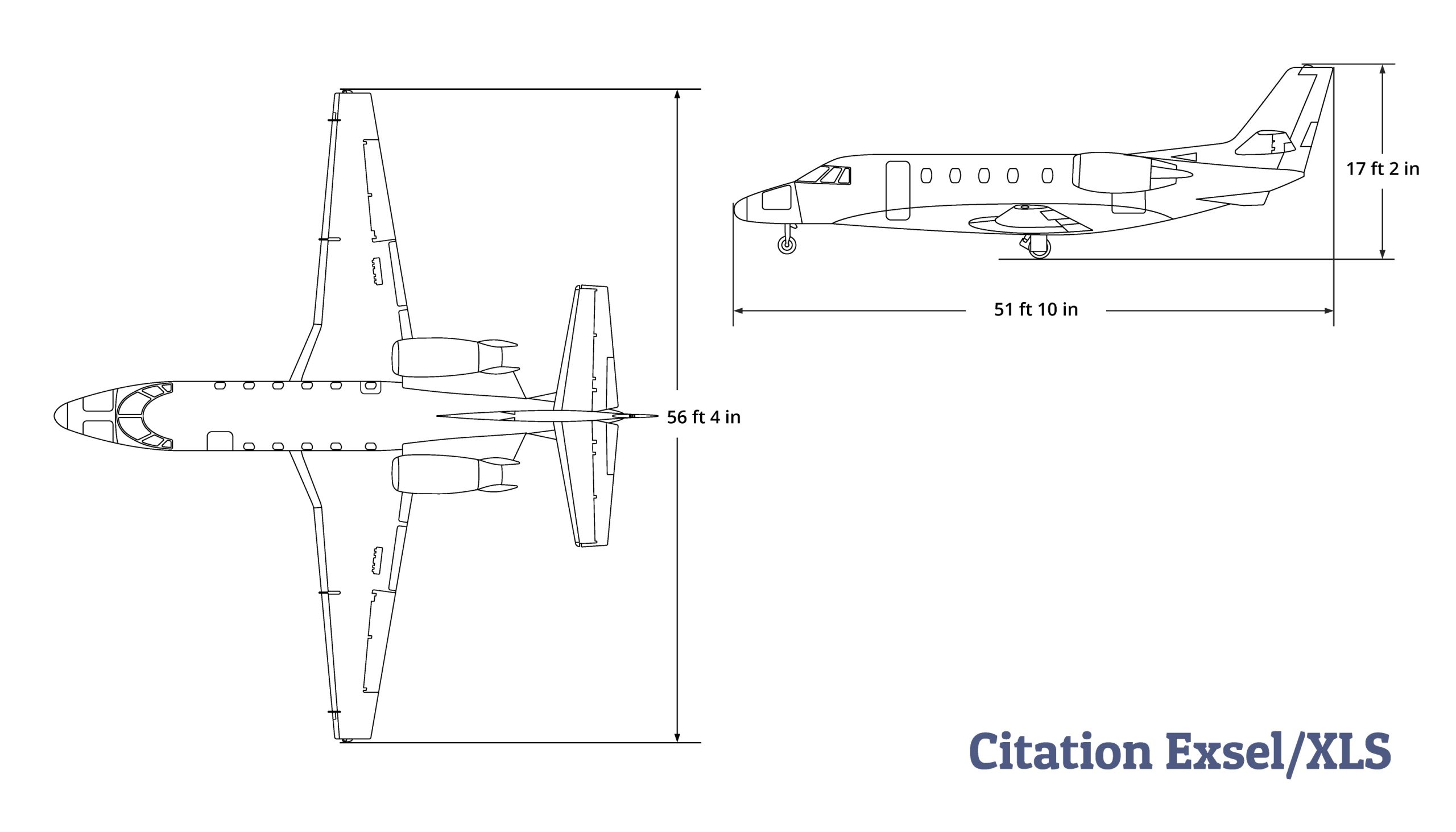

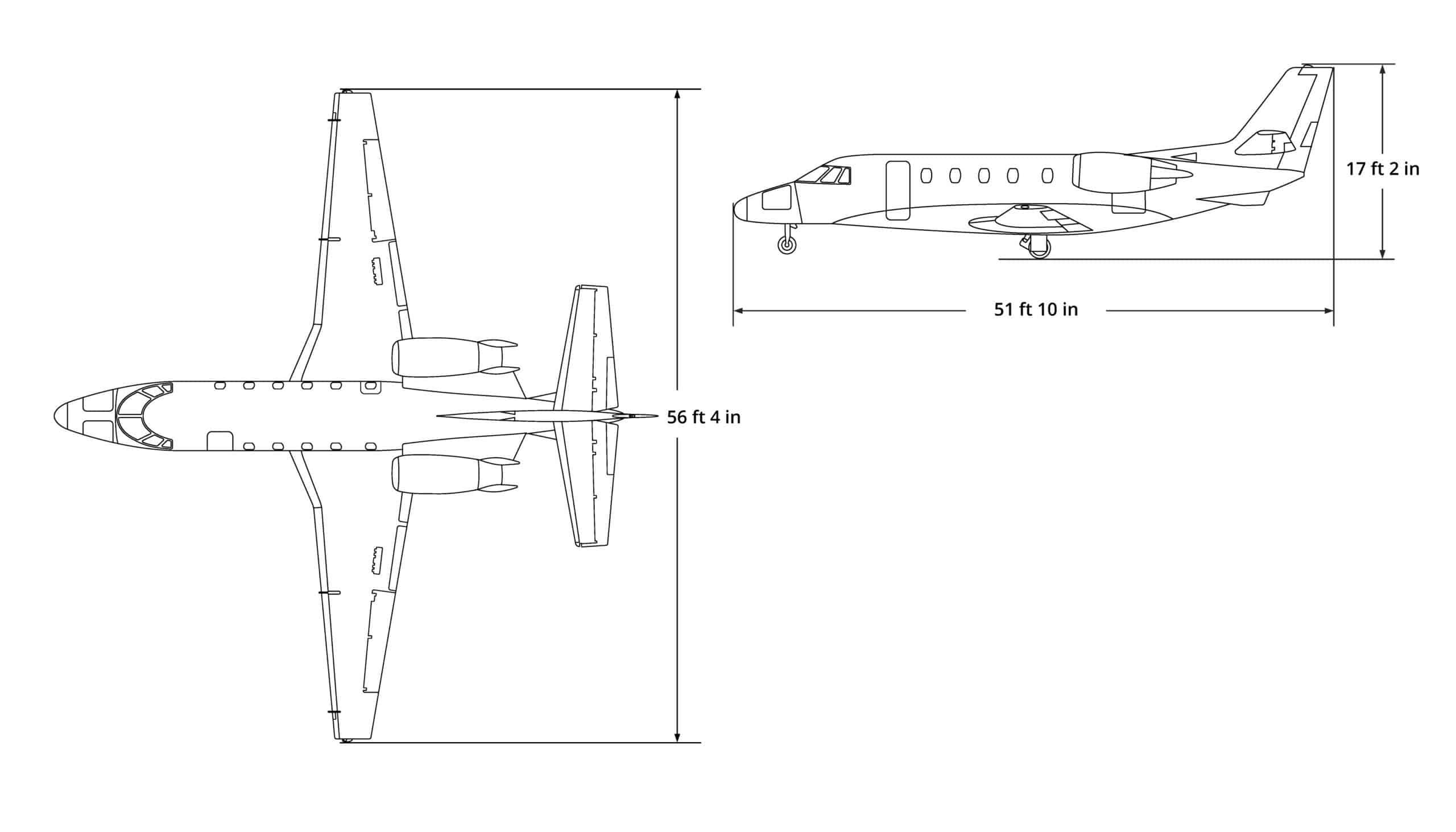

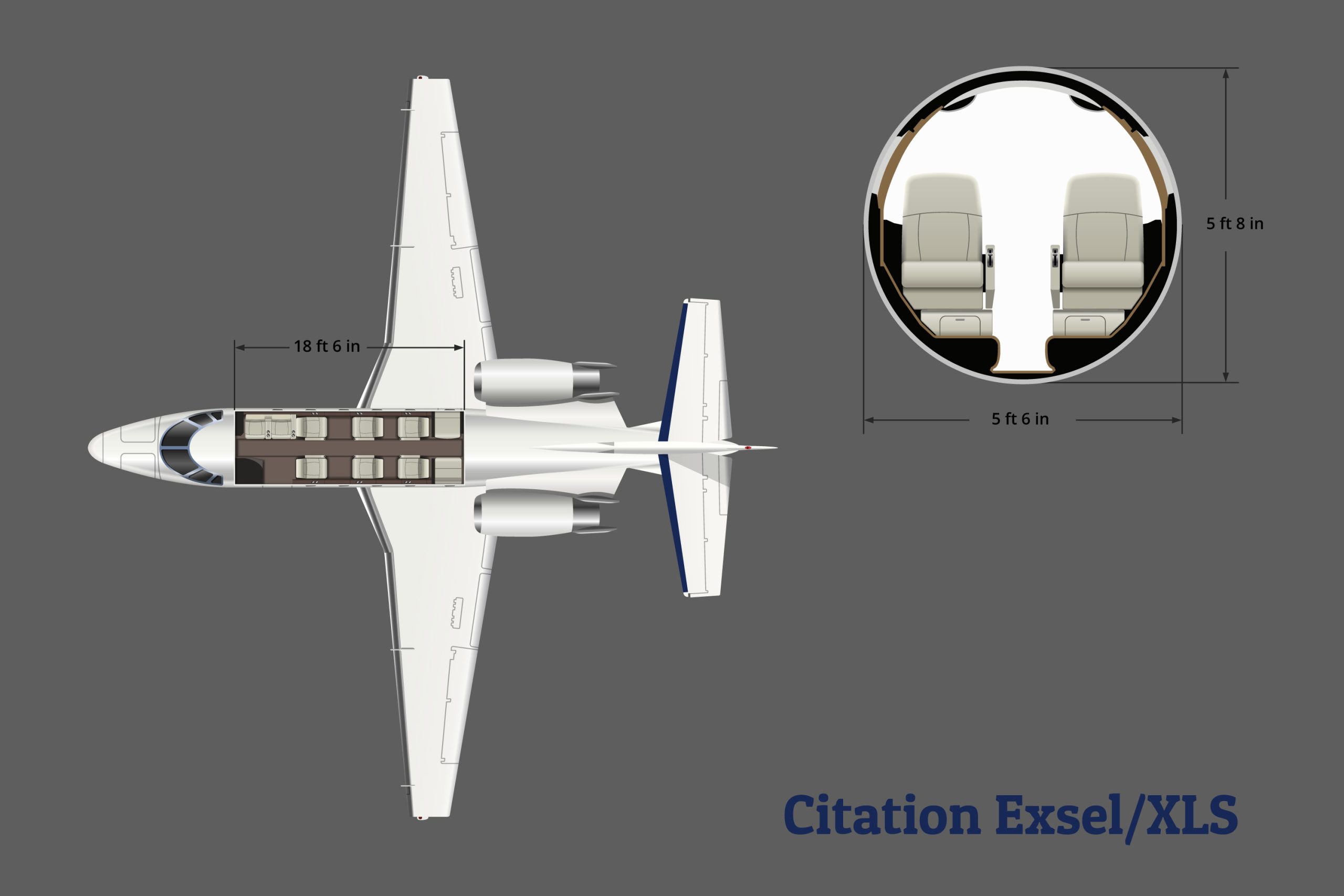

Aircraft Dimensions
Cabin Height (Feet):
5'8"
Cabin Width (Feet):
5'6"
Cabin Length (Feet):
18'6"
Cabin Volume ft³:
579.98
Wingspan (Feet):
56'3"
Fuselage Length (Feet)
51'6"
Aircraft Performance
Range, Crew Only (NM):
1900
Balance Field Length (Feet):
3900
Landing Distance (Feet):
3200
Normal (Max) Cruise Speed (KTS):
430
Maximum Cruise Speed (KTS):
433
Fuel Burn (GPH):
227
Service Ceiling (Feet):
45000
Aircraft Weight and Carrying Capacity
Useful Payload With Full Fuel (lbs):
860
Max Ramp Weight (lbs):
20400
Max Payload (lbs):
2300
Maximum Take Off Weight (lbs):
20200
Maximum Landing Weight (lbs):
18700
Basic Operating Weight (lbs):
12700
Total Usable Fuel Capacity (lbs):
6740
Hourly Operating Costs
Fuel Cost based on Gallons Per Hour:
$1418.75
Airframe Maintenance Per Hour:
$576
Engine/APU Maintenance Per Hour:
$790
Other Variable Costs:
$325
Total Variable Cost Per Hour:
$3109.75
Cost per NM:
$7.23
